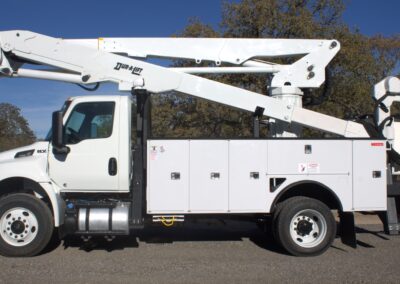

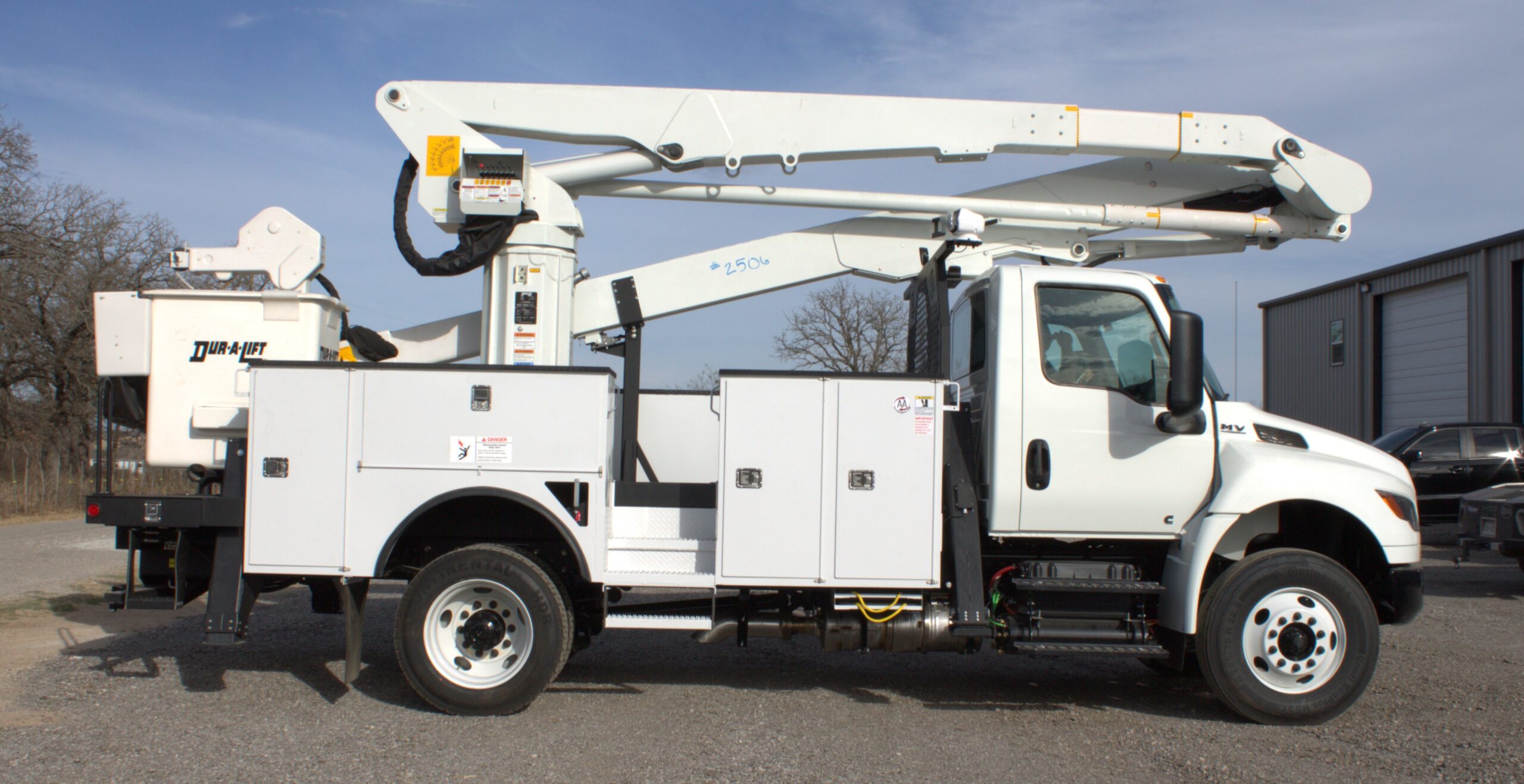

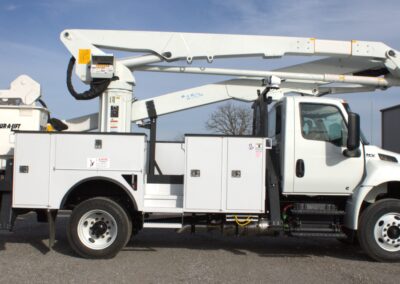

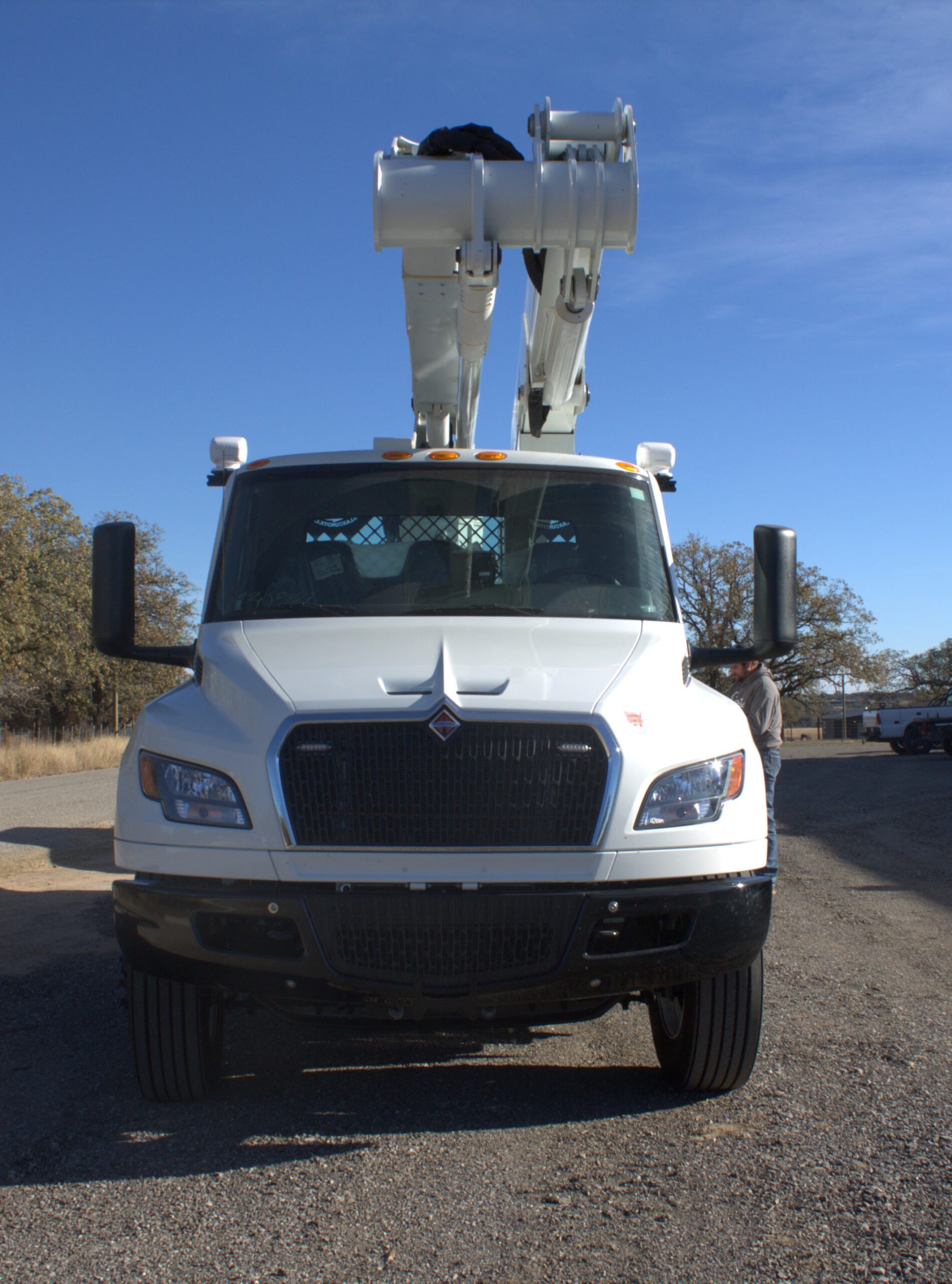

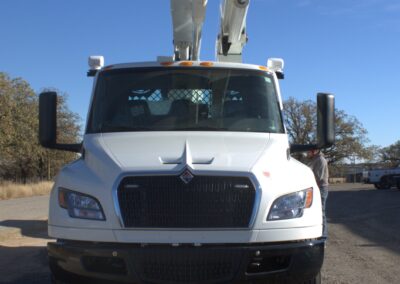

Dlt2-60du – international

Description

CATEGORY C AERIAL LIFT

• DC BACKUP – HIGH SPEED PUMP
• DLT CHASSIS ISOLATOR; ART BOOM FG INSERT
• CONTINUOUS ROTATION
• POWER STOW AT BASKET
• LOWER CONTROL STOW
• SINGLE HAND UPPER CONTROLS – INCLUDES ALL MAJOR BOOM FUNCTIONS
• LOCKOUT LEVERS
• 180° BUCKET ROTATOR
• 24” X 42” X 42” FIBERGLASS BUCKET W/ STEP
• BUCKET STEP: OPPOSITE
• CAPACITY: 400/550 LB CAPACITY
• 24” X 42” X 42”
• BUCKET INSERT LIP CLIPS- 2.5” RIM (1 Pair)
• 24” X 42” X 42” BUCKET COVER
• HYDRAULICALLY EXTENDIBLE JIB
• 55” PEDESTAL
• CLASS 6 MID MOUNT O/R FOR DLT60
• DLT A-FRAME REAR OUTRIGGERS
• DOUBLE OUTRIGGER INTERLOCK
• CATEGORY C BUCKET ELEVATOR

CHASSIS SPECIFICATIONS

• 2025 International
• DIESEL ENGINE
• 4X4 OR 4X2 available
• GVWR …………………………………………………… 33,000
• Front GAWR…………………………………………… 13,000 lbs.
• Rear GAWR …………………………………………… 21,000 lbs.
• AUTOMATIC TRANSMISSION W/ PTO Provision
• CUMMINS L9 300 HP

BODY SPECIFICATIONS

150” STEEL LINE BODY

• 36” X 94” STEEL TAILSHELF – INCLUDES TAILSHELF COMPARTMENT THROUGH BOX
• TAILSHELF LIGHTS WITH HARNESS
• OUTRIGGER PAD HOLDER, 24”
• BODY AND MOUNTING HARWARE KIT
• SINGLE WHEEL CHOCK ASSY.
• GRAB HANDLE- SMALL CHROME
• GRAB HANDLE AT ACCESS STEPS
• STREETSIDE COMPARTMENTS

1V=24” WIDE W/ (2) SHELVES EACH W/ ADJUSTABLE DIVIDERS ON 4” CENTERS

2V=24” WIDE W/ (2) SHELVES EACH W/ ADJUSTABLE DIVIDERS ON 4” CENTERS

3V=24” WIDE W/ (2) SHELVES EACH W/ ADJUSTABLE DIVIDERS ON 4” CENTERS

H=54” WIDE W/ (1) SHELF W/ ADJUSTABLE DIVIDERS ON 4” CENTERS

4V=24” WIDE W/ (2) SHELVES EACH W/ ADJUSTABLE DIVIDERS ON 4” CENTERS

• CURBSIDE COMPARTMENTS

1V=24” WIDE W/ (2) SHELVES EACH W/ ADJUSTABLE DIVIDERS ON 4” CENTERS

2V=24” WIDE W/ (2) SHELVES EACH W/ ADJUSTABLE DIVIDERS ON 4” CENTERS

3V=24” WIDE GRIPSTRUT ACCESS STEPS TO BED AREA

H=54” OPEN COMPARTMENT

4V=24” WIDE W/ (5) LOCKING/SWIVEL TYPE MATERIAL HOOKS 1-3-1

INSTALLATION AND ACCESSORIES

• OUTRIGGER PADS: 24” X 24”
• 30k PINTLE HITCH
• 7 PIN SPADE TRAILER PLUG WITH HARNESS
• PTO AND PUMP ON CLASS 6 CHASSIS
• WHEEL CHOCK WITH HANDLE
• BACKUP ALARM
• LED STROBE ON FRONT GRILLE & REAR TAILSHELF
• INCLINOMETER
• MUD FLAPS W/ MOUNTING BRACKETS
• OUTRIGGER ALARM
• C SHAPED GROUNDING LUG
• FIRE EXTINGUISHER: 5LB, ABC, W/ MOUNTING BRACKET
• TRIANGLE REFLECTOR KIT
• HOOKS IN BOTH REAR COMPARTMENTS

ADDITIONAL OPTIONS AVAILABLE UPON REQUEST!
